Class 25 Bo-Bo Diesel Locomotives

Class 25 are Sulzer powered, built at Derby

and have a maximum speed of 90 mph.

[Author & photographer © Dr Phil Brown PhD

(plus text help from AI these days), page updated May 6th 2026]

D7628 SYBILLA is one of twenty Class 25 diesel locomotive to survive of its class and operates on the NYMR. Class 25 diesel locomotive 25059 and D5185 are also featured.

A history of Class 25 diesel electric locomotives

My Archive Steam Photos from the 1960s

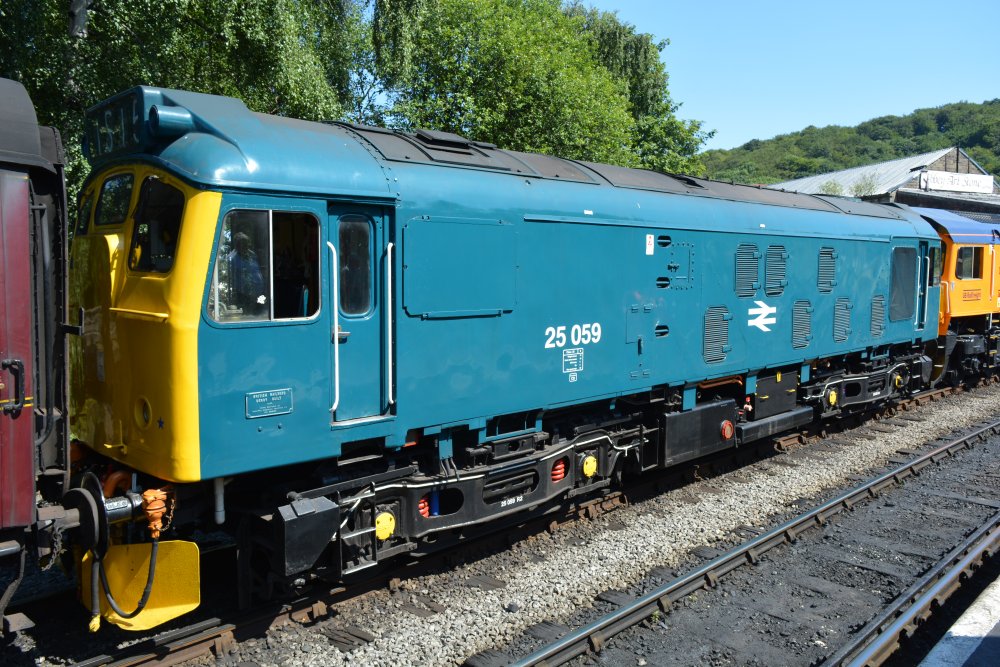

Class 25 diesel locomotive 25059 (25 059 in British Rail blue livery) at Keighley station double heading a special with 66784 as part of the  Keighley & Worth Valley Railway, 50th Anniversary gala week in June 2018

TOP of PAGE

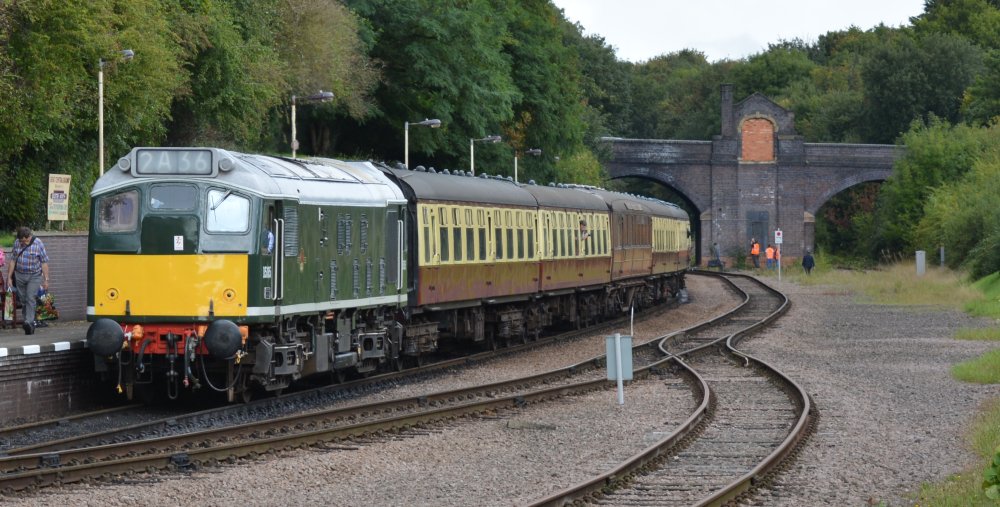

Class 25 D5185 with a passenger train at Loughborough (GCR Diesel Gala, Sept. 2017)

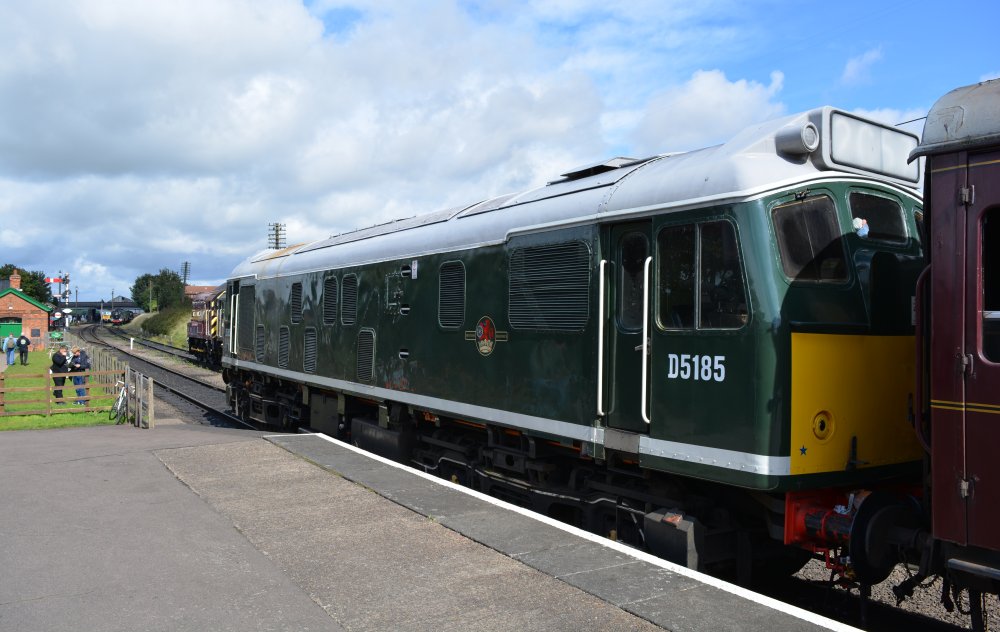

Class 25 D5185 at Leicester North with a train from Loughborough (GCR Diesel Gala, Sept. 2017)

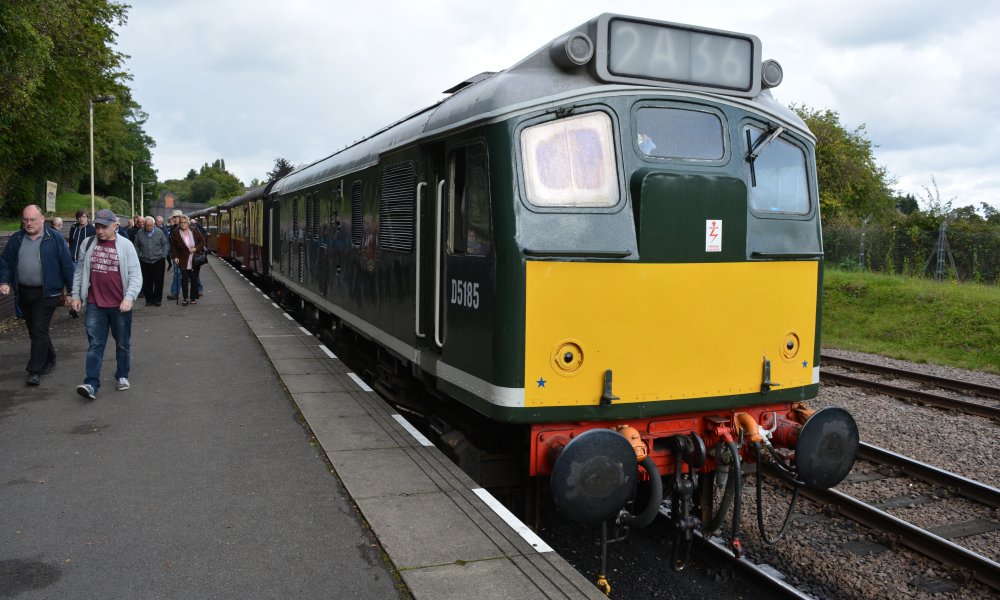

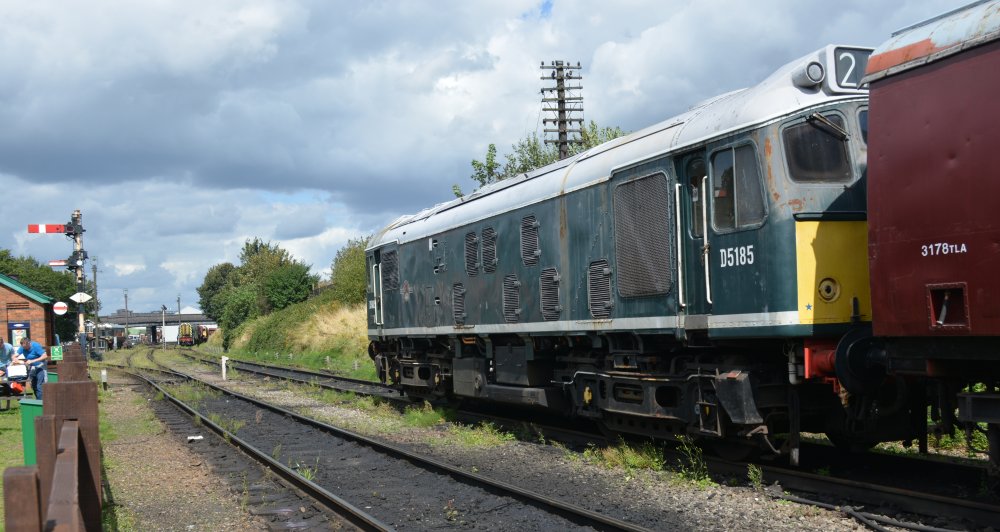

Class 25 D5185 with a passenger train at Loughborough Central (GCR Diesel Gala, Sept. 2017)

TOP of PAGE

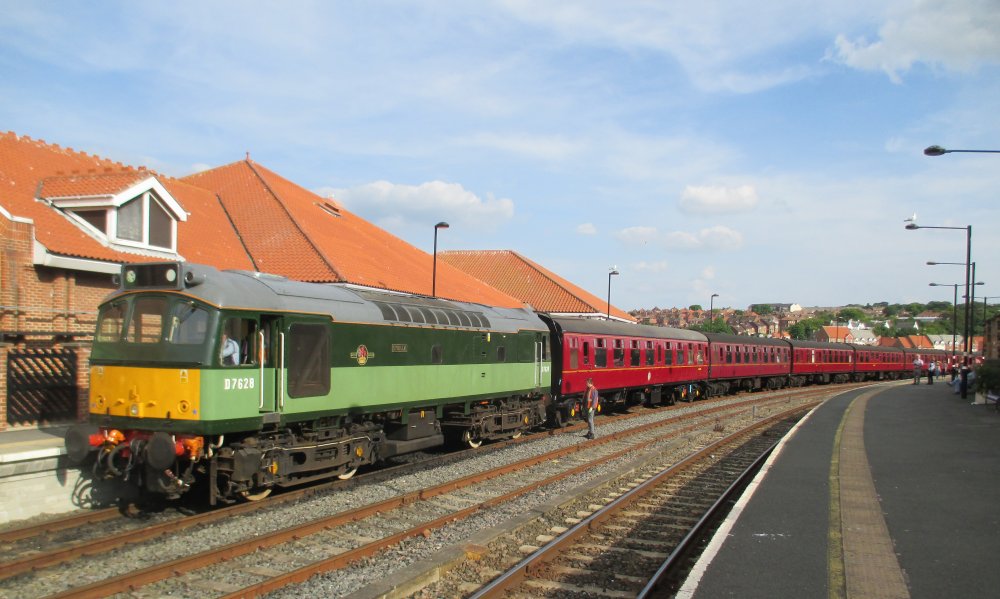

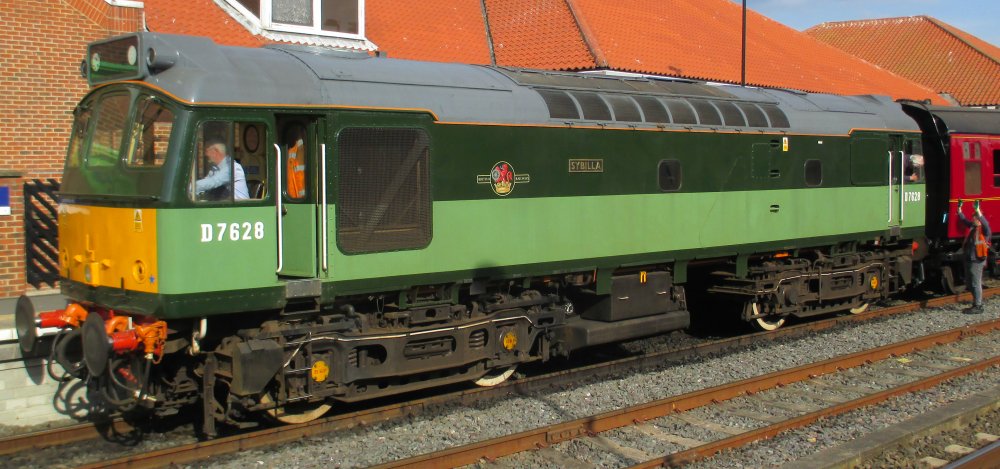

Class 25 diesel D7628 SYBILLA with an NYMR service, turning round on the loop at Whitby station to return to Grosmont.

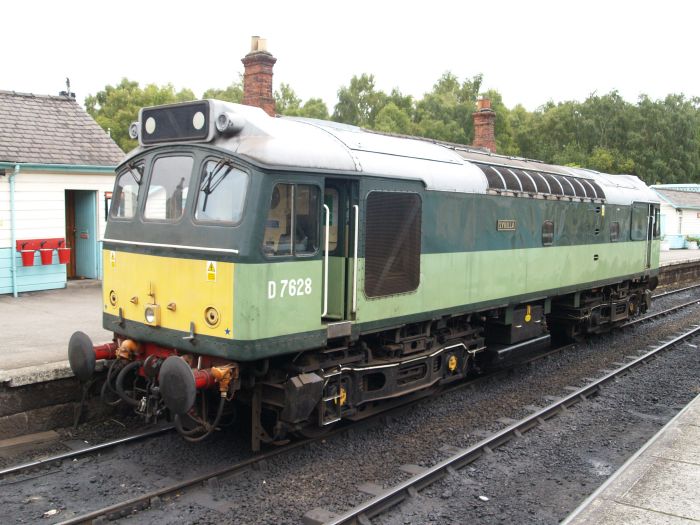

NYMR Diesel Gala 2011: Class 25 Bo-Bo Type D7628 SYBILLA built in 1965 (Class 25 25278)

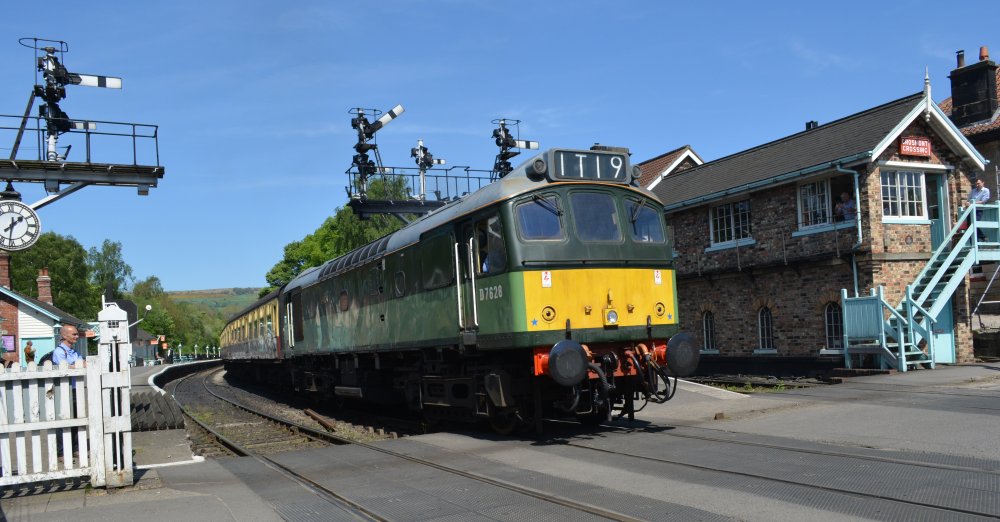

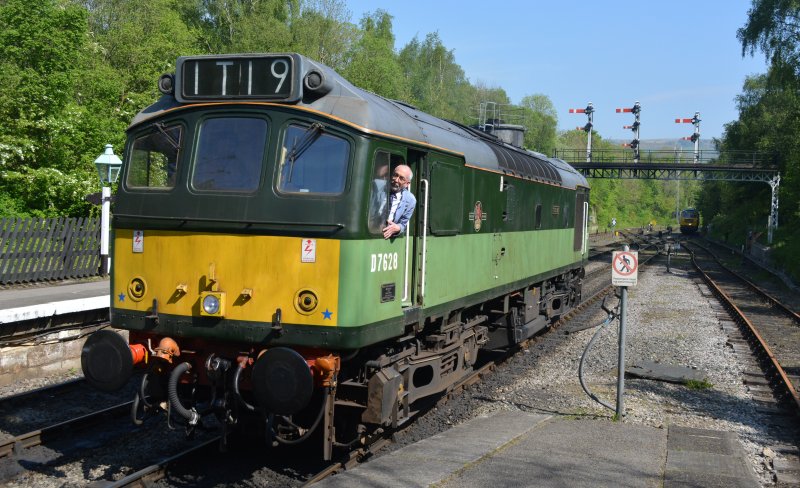

Class 25 diesel D7628 Sybilla waits at Grosmont with an NYMR railway service for Pickering (44806 on the left)

Steam and diesel heritage railway trains side by side!

TOP of PAGE

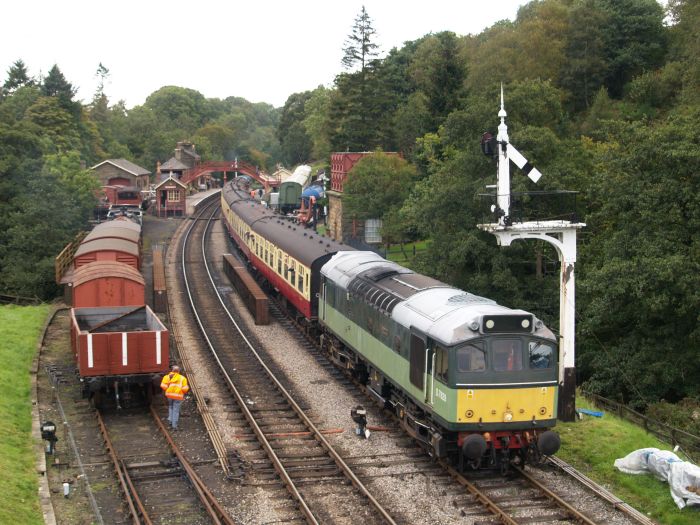

Class 25 D7628 leaves Goathland with a train for Pickering.

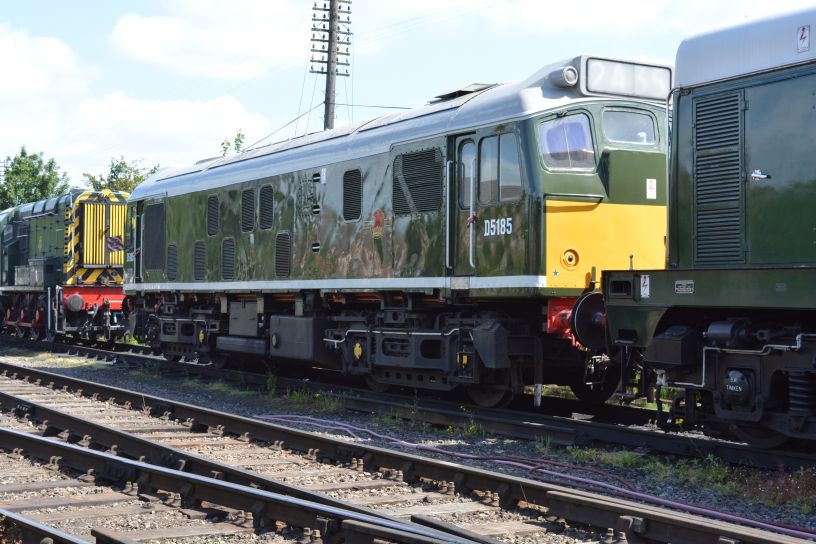

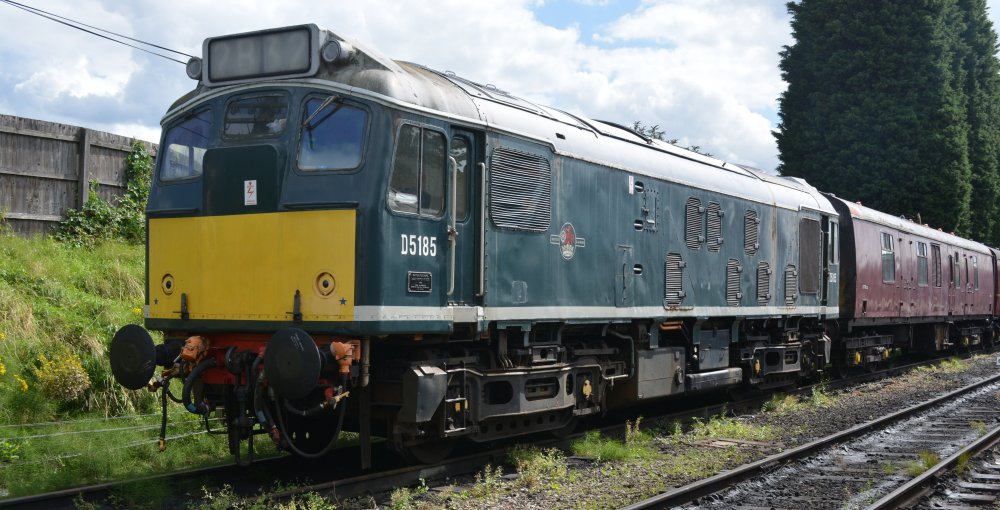

Diesels on the Great Central Railway: Ex British Railways Class 25 D5185 (D 5185) CASTELL DINAS BRAN in BR green livery. This a BR Sulzer Class 25 diesel-electric locomotive built at Darlington North Road Locomotive Works in 1963, later named as Bo-Bo Type 25 25035 (25 035).

NYMR Diesel Gala 2011: Class 25 D7628/D 7628 stands next to Class 24 D5061/D 5061 at Grosmont station.

TOP of PAGE

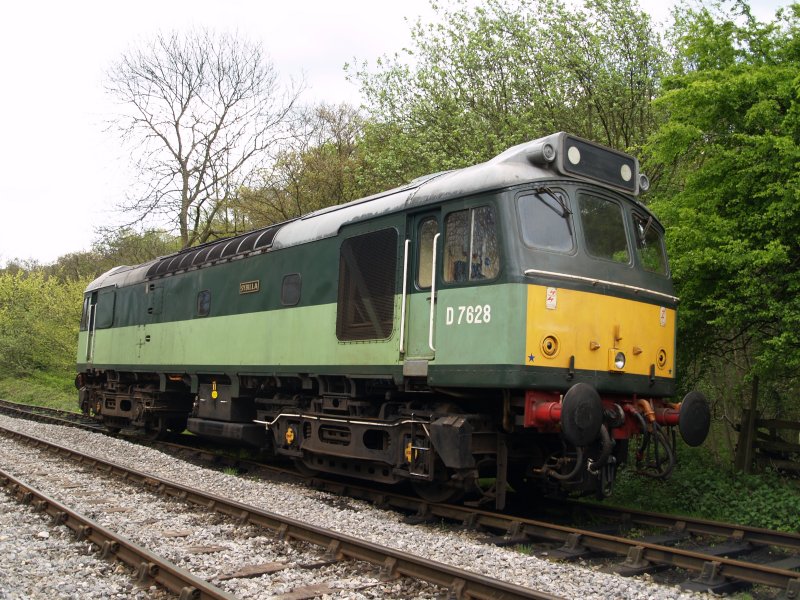

Class 25 D7628 ascending the bank near Green End

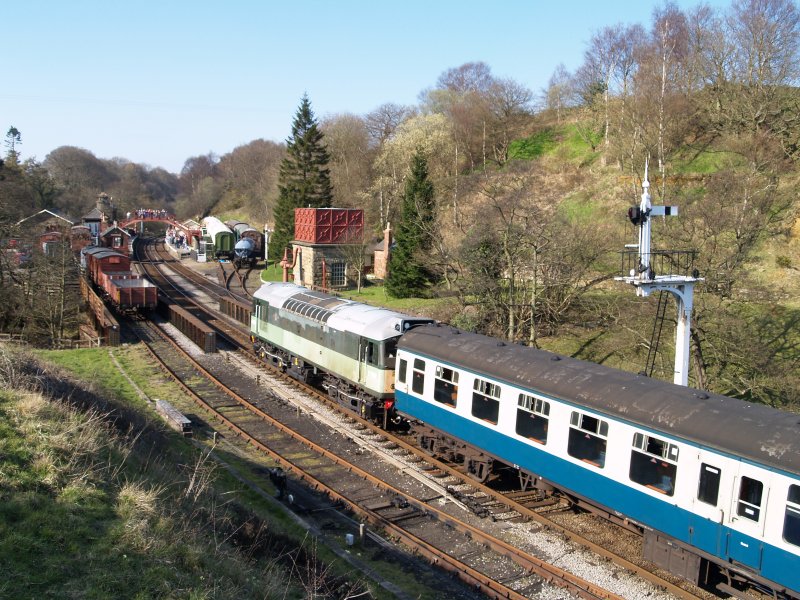

Class 25 D7628 is called "SYBILLA", here hauling a Pickering-Grosmont train into Goathland station (other numbers (D 7628, 25278, 25 278).

TOP of PAGE

A history of Class 25 diesel electric locomotives

The British Rail Class 25—also known as the Sulzer Type 2—were 327 mixed‑traffic diesel‑electric locomotives built between 1961 and 1967, evolving from the earlier Class 24 and becoming one of BR’s most widely used Type 2 designs.

Origins and Development of the Class 25 diesel-electric locomotives

The Class 25 emerged from the 1955 Modernisation Plan, which sought a new generation of diesel locomotives to replace steam. The earlier Class 24 proved under‑powered and limited to 75 mph; Sulzer’s improved 6LDA28‑B engine, fitted with an intercooler, raised output to 1,250 hp, enabling a higher 90 mph top speed. This upgrade formed the basis of the Class 25.

Production took place at:

• BR Darlington Works

• BR Derby Works

• BR Crewe Works

• Beyer, Peacock & Co., Manchester (36 locomotives)

A total of 327 locomotives were built between 1961–1967, numbered D5151–D5299 and D7500–D7677 (later 25001–25327).

Technical Characteristics of the Class 25 diesel-electric locomotives

Key features included:

• Bo‑Bo wheel arrangement

• Sulzer 6LDA28‑B six‑cylinder diesel engine

• 1,250 hp output

• Top speed 90 mph

• Starting tractive effort 39,000–45,000 lbf

• Steam heating boilers fitted to many for passenger work

• Blue Star multiple‑working capability

Their compact size and versatility earned them the enthusiast nickname “Rats”, reflecting their ubiquity across the network.

Sub‑Classes and Design Evolution of the Class 25 diesel-electric locomotives

The Class 25 family developed through several sub‑classes, each with mechanical and cosmetic changes:

Class 25/0 (D5151–D5175)

• Built at Darlington

• BTH electrical equipment

• Cab‑front connecting doors and roof‑mounted headcode box

Class 25/1 (D5176–D5232)

• Built at Darlington and Derby

• Switch to AEI traction motors

• Revised fuel/water tanks; cab skirts removed

Class 25/2 (D5233–D5299, D7500–D7597)

• Major bodywork redesign: removal of cab‑front doors, enlarged centre window

• Bodyside grilles moved to cantrail level

• New two‑tone green livery

Class 25/3 (D7598–D7677)

• Built at Derby and Beyer Peacock

• Introduction of solid‑state electronics

• Final 18 units completed at Derby due to Beyer Peacock’s financial issues

Class 25/9 (1985)

• Twelve Class 25/3s modified for ICI road‑salt trains from Winsford

• Withdrawn when the contract was lost

ETHEL Units (1983)

Three Class 25/3s converted into Electric Train Heating Ex‑Locomotives, used as mobile generators for passenger stock in Scotland.

Operational Service of the Class 25 diesel-electric locomotives

Class 25s were true mixed‑traffic locomotives, handling:

• Freight (coal, minerals, general merchandise)

• Passenger services (especially on secondary routes)

• Engineering trains

• Multiple‑unit formations of up to three locomotives

They were widely used across the BR network, though the Eastern and Southern Regions never had long‑term allocations.

Withdrawal and Preservation of the Class 25 diesel-electric locomotives

Withdrawals began in 1971 (accident damage) and accelerated through the 1980s, with the final locomotive retired in March 1987.

Of the 327 built, around 20 survive in preservation, many operational on heritage railways.
