Sulzer powered, max. speed 75 mph. Contemporary and Heritage-Preserved, Diesel, Diesel-Electric and Electric Locomotives My Archive Steam Photos from the 1960s [Author & photographer © Dr Phil Brown PhD (plus text help from AI these days), page updated May 6th 2026]The British Railways Class 24 diesel locomotives, also known as the Sulzer Type 2, were built from 1958 to 1961. 151 Class 24 diesel locomotives were built at Derby, Crewe and Darlington works. The first twenty of the Class 24 locomotives were part of the British Railways 1955 Modernisation Plan. The Class 24 design was the basis of developing the Class 25 diesel locomotives. The final survivor, no. 24081, was withdrawn from Crewe depot in 1980. Their main power is the Sulzer 6LDA28 diesel engine.
A history of Class 24 diesel electric locomotives
Class 24 Bo-Bo diesel locomotive D5054 Phil Southern travelling light south through Quorn and Woodhouse station, Great Central Railway heritage weekend 'Railways at Work' (GCR August 2023). Class 24 BR diesel locomotive D5054 became Class 24 No. 24054.

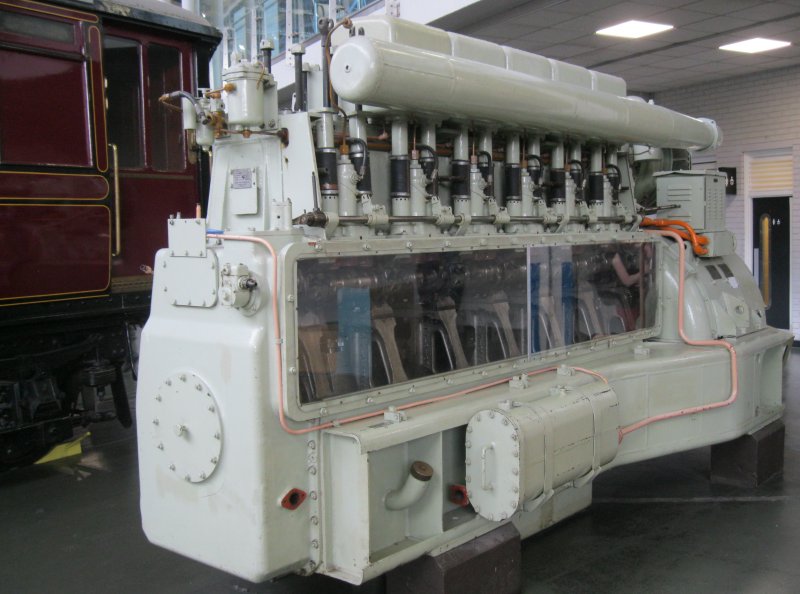

Picture of a Sulzer diesel engine that powers a Class 24 diesel locomotive.
Class 24 Bo-Bo diesel locomotive D5054 PHIL SOUTHERN with a demonstration freight train at Quorn and Woodhouse station, Great Central Railway heritage weekend 'Railways at Work' (GCR August 2023)
Portrait of Class 24 Bo-Bo diesel locomotive D5054 PHIL SOUTHERN with a demonstration freight train in the goods yard of Quorn and Woodhouse station, Great Central Railway heritage weekend 'Railways at Work' (GCR August 2023)
Class 24 Bo-Bo diesel locomotive D5054 with a demonstration freight train passing south through Quorn and Woodhouse station, Great Central Railway heritage weekend 'Railways at Work' (GCR August 2023)
NYMR Diesel Gala 2011: Class 24 Bo-Bo D5061 was built at Crewe Locomotive Works in 1960, so is now over 50 years old! (D 5061, 24061, 24 061, RDB 968007, 97201). D5061 is now named EXPERIMENT. Class 24 BR diesel locomotive D5061 became Class 24 No. 24061 before retirement.
Class 24 diesel locomotive D5061 has been named Ian Johnson, a volunteer on the NYMR who sadly died whilst working on the railway.
Class 24 D5061 demonstrating shunting duties at Levisham.
Class 24 D5061 leaving Grosmont with the scenic coach train to Pickering.
Class 24 D5061, built at Crewe Works in 1959, parked in sidings south of Grosmont sheds (other numbers 24 061, 24061, D 5061, RDB 968007-97201).
Class 24 D5061 approaches Goathland with a train from Pickering.
NYMR Diesel Gala 2011: Class 24 D5061 arrives in Pickering with a train from Grosmont.
NYMR Diesel Gala 2011: Class 25 D7628 stands next to Class 24 D5061 at Grosmont station.
Class 24 D5061 leaving Pickering heading north a mile from the station A history of Class 24 diesel-electric locomotives The Class 24 diesel‑electric locomotives—originally the Sulzer Type 2—were a fleet of 151 Bo‑Bo Type 2 locomotives built between 1958 and 1961 at Derby, Crewe, and Darlington Works, forming one of the earliest and most influential diesel classes of the BR Modernisation Plan. Origins and Development of Class 24 diesel-electric locomotives (1955–1961)The Class 24s were conceived under the 1955 Modernisation Plan, which sought to replace steam with standardised diesel types. The first 20 locomotives (D5000–D5019) were part of the pilot scheme to test diesel traction in everyday service. Between 1958 and 1961, BR built 151 locomotives, numbered D5000–D5150, later renumbered 24001–24141 under TOPS. They served as the direct precursor to the more numerous and refined Class 25, sharing many components and design principles. Technical Characteristics of Class 24 diesel-electric locomotivesThe Class 24 was designed around off‑the‑shelf components, reducing cost and complexity. Key features include:
Two main subclasses existed:
Operational Service of Class 24 diesel-electric locomotivesClass 24s were widely deployed across:
They handled:
Their gangwayed cab ends—intended for multiple working with coaching stock—were rarely used and later plated over. Modifications and later life of Class 24 diesel-electric locomotivesAs steam‑heated passenger work declined, many Class 24/1s had their boilers removed, reducing weight and simplifying maintenance. Some locomotives (e.g., D5102–D5111) had boilers removed to install extra air compressors for Consett iron‑ore trains. Withdrawal of Class 24 diesel-electric locomotives (1967–1980)Withdrawals began in 1967,
accelerating through the 1970s as more powerful and reliable locomotives
(notably Class 25s and 31s) took over. Preservation of Class 24 diesel-electric locomotivesOnly four Class 24s survive today, all preserved and restored to pre‑TOPS numbers. They are historically significant as:
⭐ Why the Class 24 diesel-electric locomotives matter
