(j) Examples of intermolecular AND intramolecular hydrogen bonding for the same aromatic molecule and contrasted them with their positional isomers

Some molecules only display intramolecular hydrogen bonding or intermolecular hydrogen bonding and others both.

As already mentioned in section (f), carboxylic acids are often dimers in the vapour phase and when dissolved in non-polar organic solvents (measured M_r is twice expected), but free individual molecules in aqueous solution.

In the liquid and solid states the hydrogen bonding situation for carboxylic acids is more complex, they can be dimers or exhibit intramolecular hydrogen bonding and extended structures via intermolecular hydrogen bonding including the involvement of other intermolecular forces including instantaneous dipole- induced dipole and permanent dipole - permanent dipole forces (Van der Waals forces).

When isomers are compared, you can see the effect of the different hydrogen bonds on e.g. melting point and solubility

To illustrate this, I've described the situation for a variety of aromatic molecules and looked at their melting points and boiling points.

Intramolecular hydrogen bonding tends to reduce the melting/boiling points of the molecules and also tends to reduce their solubility in water.

Case studies of hydrogen bonding

1. nitrophenols

2. aminophenols

3.hydroxybenzoic acids

4. methyl esters of hydroxybenzoic acids

5. aminobenzoic acids

6. hydroxybenzaldehydes

Intermolecular AND intramolecular hydrogen bonding in nitrophenols and aminophenols

Name of 'phenol'	Structure (hydrogen bonding diagrams below)	Mpt/oC	Bpt/oC	Comments
2-nitrophenol		45	216	2-nitrophenol exhibits both intramolecular and intermolecular hydrogen bonding. All three isomers can display intermolecular hydrogen bonding.
3-nitrophenol		97	high, dec.
4-nitrophenol		114	dec. 279
2-aminophenol		174	dec.?	2-aminophenol displays both intramolecular and intermolecular bonding. All three isomers can display intermolecular hydrogen bonding.
3-aminophenol		122	dec.?
4-aminophenol		187	284

1. nitrophenols (see data table above)

All these three nitrophenols exhibit intermolecular hydrogen bonding, but only 2-nitrophenol can form an intramolecular hydrogen bond and, as with many cases, it seems to significantly lower the melting point.

Is this because the other isomers can form several hydrogen bonds per molecule (diagram above).

Note for this example of 2-nitrophenol, because of the C-O and C-N bond angles from the benzene ring, the 'hexagonal ring' does not allow a linear hydrogen bond >O–H^δ+llll^δ–O-N and also notes the significantly lower melting point and boiling point of 2-nitrophenol.

2-nitrophenol also has a much lower solubility in water (data below in g/100 cm³ at 25^oC)

2-nitrophenol (0.2),  3-nitrophenol (1.35),  4-nitrophenol (1.24)

The reason is due to the intramolecular hydrogen bond in 2-nitrophenol inhibiting forming hydrogen bonds with water to aid solvation. The other two isomeric nitrophenols can readily form hydrogen bonds with water.

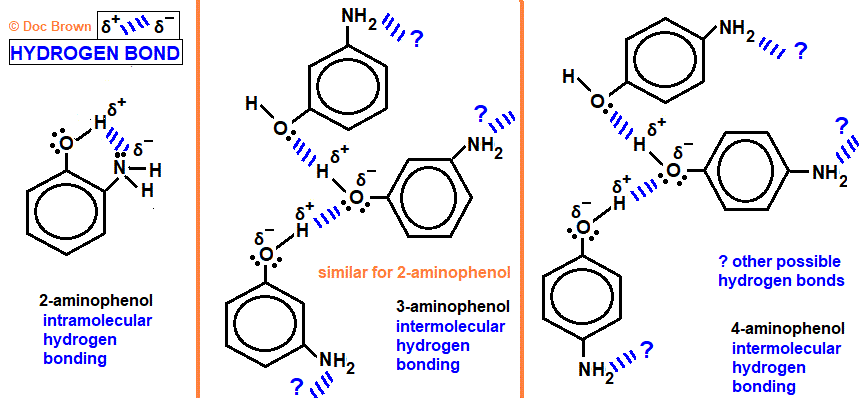

2. aminophenols (see data table above)

All three aminophenols can display intermolecular hydrogen bonding, but only 2-aminophenol can form a five membered ring intramolecular hydrogen bond involving >O–H^δ+llll^δ–N and all three isomers can form intermolecular hydrogen bonds (no diagram yet).

All three isomers OH hydrogen bonds

Can other intermolecular hydrogen bonds form from the protons of the amine group rather than the nitrogen atom? i.e. >N–H^δ+llll^δ–N  or  >N–H^δ+llll^δ–O

Intermolecular AND intramolecular hydrogen bonding in hydroxybenzoic acids, methyl hydroxybenzoic acids and aminobenzoic acids

The hydrogen bonding in carboxylic acids is complicated and there are up to three possibilities depending on the structure and physical state of the acid.

(i) I've already covered the formation of a carboxylic dimer via hydrogen bonding in section (f) Hydrogen bonding in carboxylic acid dimers

(ii) All carboxylic acids can exhibit intermolecular hydrogen bonding.

(iii) As well as (ii), a the third possibility is an intramolecular hydrogen bond e.g. aromatic carboxylic acids with an -OH or -NH₂ substituent in the 2- position (these are described first in this section).

Names of aromatic acid	Structure (hydrogen bonding diagrams below)	mpt/oC	Comments
2-hydroxybenzoic acid		158	2-hydroxybenzoic acid exhibits intramolecular hydrogen bonding. All three isomers can display intermolecular hydrogen bonding.
3-hydroxybenzoic acid		202
4-hydroxybenzoic acid		214
2-aminobenzoic acid		147	2-aminobenzoic acid exhibits intramolecular hydrogen bonding. All three isomers can display intermolecular hydrogen bonding.
3-aminobenzoic acid		173
4-aminobenzoic acid		188

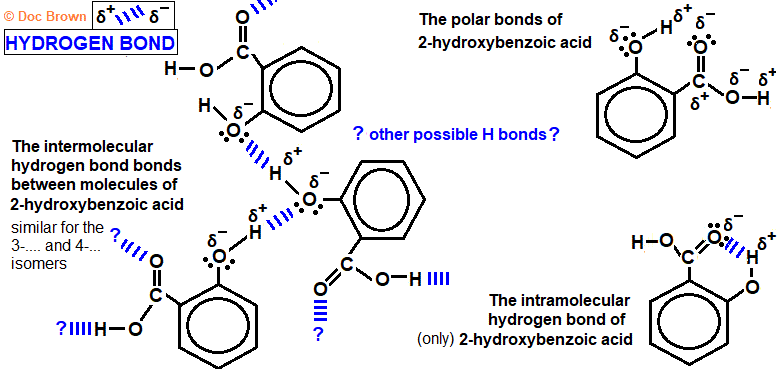

3. Hydroxybenzoic acids

HO-C₆H₄-COOH  (three positional isomers)

You get the same situation with 2-hydroxybenzoic acid in which the intramolecular hydrogen bonding dominates (diagram below).

All three isomeric hydroxybenzoic acids exhibit intermolecular hydrogen bonding, but only 2-hydroxybenzoic acid can  give an intramolecular hydrogen bond.

Note for 2-hydroxybenzoic acid, because of the C-O and C-C bond angles from the benzene ring, it does not display a linear hydrogen bond O–H^δ+llll^δ–O-H and note the significantly lower melting point of 2-hydroxybenzoic acid.

Other intermolecular hydrogen bonds can be formed between the carbonyl group of the carboxylic acid group and the phenol group  -O–H^δ+llll^δ–O=C<

4. Extra data: The three isomeric methyl esters of hydroxybenzoic acid

HO-C₆H₄-COOCH₃  (three positional isomers)

methyl 2-hydroxybenzoate: mpt -9^oC and bpt 220^oC, exhibits both intramolecular and intermolecular hydrogen bonds

methyl 3-hydroxybenzoate: mpt 72^oC and bpt >281^oC, only intermolecular hydrogen bonds

methyl 4-hydroxybenzoate: mpt 126^oC and bpt 265^oC, only intermolecular hydrogen bonds

All three methyl esters of the hydroxybenzoic acids exhibit intermolecular hydrogen bonding, but only methyl 2-hydroxybenzoate can display intramolecular hydrogen bonding (diagram above).

Note for this example of methyl 2-hydroxybenzoate, because of the C-O and C-C bond angles from the benzene ring, it does not display a linear hydrogen bond O–H^δ+llll^δ–O-H and note the significantly lower melting point and boiling point of methyl 2-hydroxybenzoate.

Other intermolecular hydrogen bonds can be formed between the carbonyl group of the ester linkage and the phenol group  -O–H^δ+llll^δ–O=C<

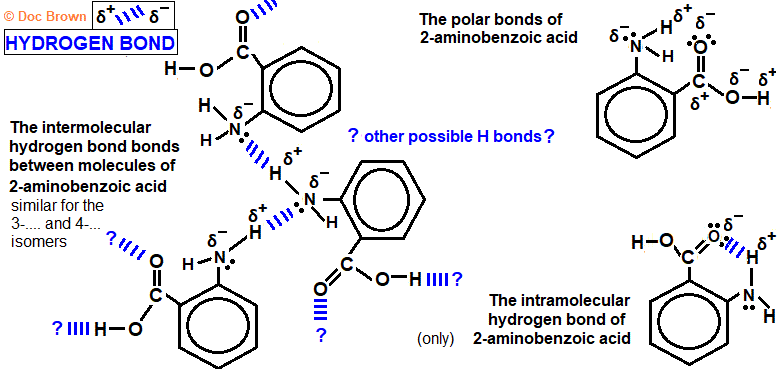

5. Aminobenzoic acids

H₂N-C₆H₄-COOH  (three positional isomers)

All three isomeric aminobenzoic acids can exhibit intermolecular hydrogen bonding, but only 2-aminobenzoic acid can also form an intramolecular hydrogen bond and notes much lower melting point, presumably the intramolecular hydrogen bond inhibits intermolecular hydrogen bonding.

Note for this example of 2-aminobenzoic acid, because of the C-O and C-N bond angles from the benzene ring, it does not display a linear hydrogen bond O–H^δ+llll^δ–N

Other intermolecular hydrogen bonds can be formed between the carbonyl group of the ester linkage and the phenol group  -O–H^δ+llll^δ–O=C<  or  -O–H^δ+llll^δ–O=C< and probably other possibilities too.

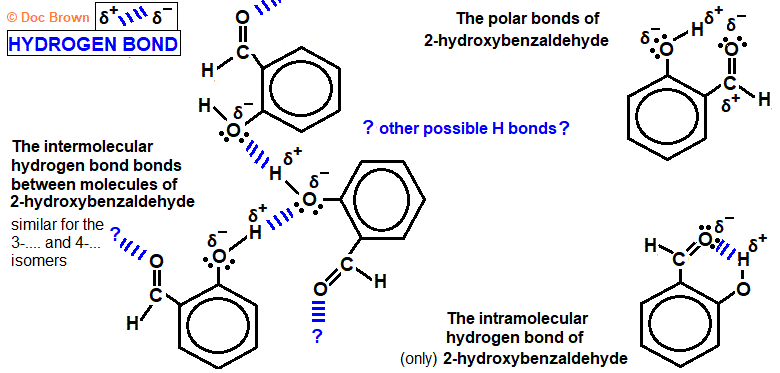

6. Extra data: Hydroxybenzaldehydes (diagram below)

Intramolecular and intermolecular hydrogen bonds in hydroxybenzaldehyde molecules

HO-C₆H₄-CHO  (three positional isomers)

2-hydroxybenzaldehyde: mpt -7^oC and bpt 197^oC

3-hydroxybenzaldehyde: mpt 101^oC and bpt 191^oC

4-hydroxybenzaldehyde: mpt 115^oC and bpt 310^oC

All three isomeric hydroxybenzaldehydes exhibit intermolecular hydrogen bonding, but only 2-hydroxybenzaldehyde can  give an intramolecular hydrogen bond (diagram above).

Note for 2-hydroxybenzaldehyde, because of the C-O and C-C bond angles from the benzene ring, it does not display a linear hydrogen bond O–H^δ+llll^δ–O-H and note the significantly lower melting point of 2-hydroxybenaldehyde.

Other intermolecular hydrogen bonds can be formed between the carbonyl group of the aldehyde group and the phenol group  -O–H^δ+llll^δ–O=C<



• Apart from section (k) onwards - see other detailed case studies of intermolecular bonding including hydrogen bonding see

  • and comparing the boiling pints of different organic molecules

  • and homologous series boiling point comparison and explanation of trends

  • and other case studies of boiling points of covalent molecules related to intermolecular forces

  • otherwise read on from section (k) onwards

Sub-index of notes on hydrogen bonding

(k) Hydrogen bonding in sugars (e.g. glucose) and polysaccharides (glycogen, starch and cellulose)

All sugars and polysaccharide molecules have hydroxyl (OH) groups which can engage in hydrogen bonding which explains why sugars are very soluble in water.

The diagram above shows the intermolecular hydrogen bonding between glucose molecules themselves and high solubility in water via hydrogen bonding between glucose and water molecules which aids solvation.

A non-polar hydrocarbon - highly polar sugar comparison

I've chosen to discuss two molecules of similar size, molecular mass and number of electrons, which theoretically exhibit similar instantaneous dipole - induced dipole intermolecular bonding.

A considerable contrast when comparing the melting point and solubility in water of glucose C₆H₁₂O₆ (M_r = 180, 96 electrons) mpt ~146^oC and the cycloalkane cyclotridecane C₁₃H₂₆ (M_r = 182, 104 electrons) mpt ~-57^oC.

The cyclo-hydrocarbon has no polar bonds, melts at a much lower temperature and boils intact without thermal decomposition. There are only instantaneous dipole - induced dipole intermolecular bonds in cyclotridecane, but glucose has additional intermolecular bonding from permanent dipole - permanent dipole forces and hydrogen bonding.

Glucose is obviously a crystalline solid at room temperature and only begins to melt at a much higher temperature than cyclotridecane. However, before it can boil, because of the strong intermolecular bonding, it readily decomposes and browning occurs ('caramel' initially) and all sorts of compounds are formed, eventually carbonisation from water loss leaves are dark coloured carbonaceous residue!



You get hydrogen bonding in polysaccharide carbohydrates e.g. starch and cellulose

Cellulose, the main structural component of wood, forms long chains from glucose linked by glycoside bonds plus cross-linked by covalent and hydrogen bonds

n C₆H₁₂O₆ ===>  (C₅H₁₀O₅)_n + nH₂O

M_r of polymers is 10⁵ to 10⁷ (number of units 617 to 61700 per molecule)

Glycogen, starch and cellulose are natural polymers formed from glucose molecule.

There are many possible sites for hydrogen bonding in the complex structures of polysaccharide and cellulose molecules.

The diagram just points out one possible set of hydrogen bonding interactions attracting two polysaccharide molecules together.

Unlike poly(alkene) polymers, the intermolecular hydrogen bonding is so strong in polysaccharides that they do NOT melt and at higher temperatures they begin to thermally degrade.  In other words, covalent bonds are broken before all the hydrogen bonds are!

The strong intermolecular hydrogen bonding between the polymer chains accounts for why cellulose and starch are insoluble in water (starch is slightly soluble in warm water).

The intermolecular hydrogen bonding inhibits solvation to dissolve in water, whose molecules cannot penetrate the tightly bonded polysaccharide structure.

• Apart from section (l) onwards - see other detailed case studies of intermolecular bonding including hydrogen bonding see

  • and comparing the boiling pints of different organic molecules

  • and homologous series boiling point comparison and explanation of trends

  • and other case studies of boiling points of covalent molecules related to intermolecular forces

  • otherwise read on from section (l) onwards

Sub-index of notes on hydrogen bonding

(l) Examples of hydrogen bonding in synthetic polymers (polyamides and poly(ethenol)

Polyamides

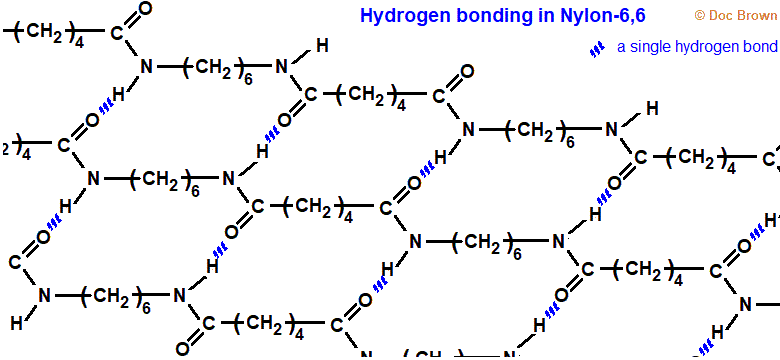

Nylon-6,6

The hydrogen bonding between adjacent polymer molecules via the >C=O and H-N groups.

Hydrogen bonding between polymer chains increases the tensile strength of plastic materials.

Repeating unit of Nylon-6,6

In the manufacturing process the strength of Nylon fibres are increased by a technique called cold-drawing in which the threads are tensioned to help the polymer molecules to line up and therefore maximising the surface-surface contact and increasing the intermolecular bonding forces of attraction.

So the effect is to increase the strength of the instantaneous dipole - induced dipole forces and the permanent dipole - permanent dipole attraction AND the symmetrical molecular alignment maximises the hydrogen bonding (llll) between the C=O and the NH groups of adjacent polymer molecules i.e. >C=O^δ-llll^δ+H-N hydrogen bond.



Kevlar - hydrogen bonding between adjacent polymer molecules >C=O and H-N

The Kevlar polymer molecules are aligned in sheets to maximise the instantaneous dipole - induced dipole forces, permanent dipole - permanent dipole between them.

The molecular sheet arrangement allows the maximum hydrogen bonding (llll) between the C=O and the NH groups of adjacent Kevlar molecules i.e. >-C=O^δ-llll^δ+H-N< creating beautiful and strong sheets of polymer.

Overall the strong intermolecular bonding gives Kevlar considerable tensile strength and is used in bullet armour protection clothing

Other polymers exhibiting hydrogen bonds

Poly(ethenol) is unusual for a poly(alkene) because it dissolves in water, the hydrogen bonding with water allows solvation (diagram above).

The polymer chain has lots of hydroxy groups to hydrogen bond with water  e.g. CO-H^δ+llll^δ-O-H₂  (see above diagram).

There will of course be hydrogen bonds between poly(ethenol) molecules themselves, if their combined strength exceeds the solvation forces described above, then the polymer becomes insoluble.

• Apart from section (m) onwards - see other detailed case studies of intermolecular bonding including hydrogen bonding see

  • and comparing the boiling pints of different organic molecules

  • and homologous series boiling point comparison and explanation of trends

  • and other case studies of boiling points of covalent molecules related to intermolecular forces

  • otherwise read on from section (m) onwards

Sub-index of notes on hydrogen bonding

(m) The effect of hydrogen bonding on the dynamic viscosity of liquids

Viscosity is a measure of the resistance of a liquid to flow. It generally increases the longer the molecule due to increased intermolecular bonding. For long molecules the viscosity also increases due to greater entanglement.

However, here, we are comparing three molecules of similar size and similar number of electrons, in terms of the effect of their intermolecular bonding on their properties including viscosity.

Their viscosity is quoted in units of dynamic viscosity at 20^oC

Units: centipoise (cP) = millipascal seconds (mPa s) i.e. 1 cP = 1 mPa s

They must be compared at the same temperature because the viscosity of a liquid decreases with increasing temperature.

All have five carbon or oxygen atoms and the same number of electrons in the molecule.

The viscosity data are at 20^oC.

Comparison comments

I've used three 'acronym' shorthands for the intermolecular bonding forces (ID-ID, Pd-PD and HB).

In terms of electron clouds, they are similar sized molecules with equal numbers of electrons, so it is relatively easy to compare the contributing inter molecular bonding forces.

The polarizabilities are quite similar, though the least polar molecule, pentane, has the highest polarizabilty.

Down the table the intermolecular bonding gets stronger increasing all of the following: the dynamic viscosity, boiling point and the enthalpy of vaporisation of the compound.

This is a pretty clear pattern for this set of organic compounds, that is easy to explain in terms of the strength of the total intermolecular bond.

Pentane - a non-polar molecule

... δ⁺=> attraction <=δ^–

The only force contributing to the intermolecular bonding is the instantaneous dipole - induced dipole force (ID-ID), the weakest of the intermolecular attractive forces.

For liquids, the dynamic viscosity decreases with increase in temperature e.g. pentane falls to 0.17 at 50^oC.

butanone - polar molecule

There are two principal contributions to the intermolecular bond - ID-ID attractive forces and permanent dipole - permanent dipole attractions (PD-PD). The extra PD-PD attractive force (illustrated with propanone below) significantly increases the strength of the intermolecular bond e.g. it raises the boiling point by 44^oC compared to pentane.

••••permanent dipole - permanent dipole attractions

butan-1-ol (1-butanol) - polar molecule

Here there is the ID-ID contribution, plus the stronger permanent dipole - permanent dipole attraction (PD-PD) and hydrogen bonding (HB) both via the hydroxyl group. The extra HB contribution from RO–H^δ+llll^δ–:O(H)R bonding between neighbouring alcohol molecules to the intermolecular bond, considerably raises both the boiling point and viscosity

Propane-1,3-diol - polar molecule

As for butan-1-ol in terms of intermolecular bonding, BUT, there are two hydroxyl groups which will increase the 'sites' for hydrogen bonding and so further increasing the total strength of the intermolecular bonding. The double hydroxyl grouping hydrogen bonding considerably increases the boiling point and viscosity even more.

• See other detailed case studies of intermolecular bonding including hydrogen bonding see

  • and comparing the boiling pints of different organic molecules

  • and homologous series boiling point comparison and explanation of trends

  • and other case studies of boiling points of covalent molecules related to intermolecular forces

First, consider the fact that hydrogen bonding explains why the melting point of highly polar phenol (40^oC) is so much higher than for methylbenzene (-95^oC), even though they are similar sized and shaped molecules with the same number of electrons and similar contributions of instantaneous dipole - induced dipole forces contribution to the intermolecular bond.

The extra contribution to the intermolecular bond from the hydrogen bonding raises the melting point of phenol by 135^oC compared to the non-polar hydrocarbon methylbenzene, which cannot exhibit any permanent dipole - permanent dipole attractive forces.

The hydrogen bonding described for phenol also explains why phenols can dissolve in water (some very soluble) and aromatic hydrocarbons are almost insoluble.

Polar phenol molecules can hydrogen bond with water and dissolve (solvation) to a greater or lesser degree but relatively non-polar methylbenzene cannot be solvated by the highly polar water solvent.

The non-polar hydrocarbon disrupts the hydrogen bonding water with no compensating hydrogen bonding or even permanent dipole - permanent dipole attractive forces.

Conversely, aromatic hydrocarbons will dissolve in non-polar organic solvents in which polar phenols are much less soluble.

This sort of argument for similar sized organic molecules can be generalised to predict the likely solubility of an organic compound in water.

See section 8.7 Solubility of covalent compounds, miscible and immiscible liquids

Some learning objectives for hydrogen bonding

(a) Learning objectives for the origin of the hydrogen bond

a1 Know that a hydrogen bond is the strongest of the intermolecular forces contributing to the total overall force of an intermolecular bond.

a2 Know that the hydrogen bond is a special case of a permanent dipole - permanent dipole attractive force.

a3 Know that, unlike other intermolecular forces that act in all directions, the hydrogen bond is directed at a particular angle between the two molecules joined by a hydrogen bond..

a4 Know that a hydrogen intermolecular bond is usually formed between a hydrogen atom (proton) and an electronegative element such as nitrogen, oxygen and fluorine and takes the form of a Y–H^δ+llll:X^δ– link where usually X = N, O or F and Y = N, O and F.

a5 Do NOT confuse a strong intramolecular bond with a much weaker intermolecular bond.

a6 Take care in how you present a diagram of a hydrogen bond i.e. show the directional linearity of the X^δ--H^δ+ǁǁǁ:X^δ- where X is usually O, N or F.

(b) Learning objectives for the spectral and X-ray diffraction evidence for the intermolecular hydrogen bond (see also (c) about the properties of hydrides)

b1 Know that the O-H and N-H chemical shifts are changed if these groups in the molecule are hydrogen bonded.

b2 Know that the wavenumber of O-H infrared spectral line is shifted and broadened if the hydroxy molecule is hydrogen bonded.

b3 Know that from X-ray crystallography the spatial positions of the hydrogen bond can be determined and also show that intermolecular hydrogen bonds are much longer than full covalent bonds.

(c) Learning objectives for evidence from the state of change properties of the hydrides of groups 5/15 to 7/17 of the periodic table.

c1 Know that ammonia, water and hydrogen fluoride have relatively high dipole moments which suggest that there will be a relatively strong intermolecular bond between these molecules.

c2 Know that the melting/boiling points of ammonia, water and hydrogen fluoride do NOT fit in with the polarizability and general mpt/bpt trends for the hydrides of group 4/14 to 7/17..

c3 Be familiar with graphs that show the anomalous behaviour of ammonia, water and hydrogen fluoride e.g. graphs of boiling point versus period number or electron number.

c4 Know, and be able to explain, why the melting/boiling points and enthalpies of state changes for ammonia, water and hydrogen fluoride are higher than expected due to hydrogen bonding.

c5 Be able to draw diagrams to illustrate the hydrogen bonding in ammonia, water and hydrogen fluoride.

(d) Learning objectives for liquid ammonia, water and alcohols, including solution mixtures

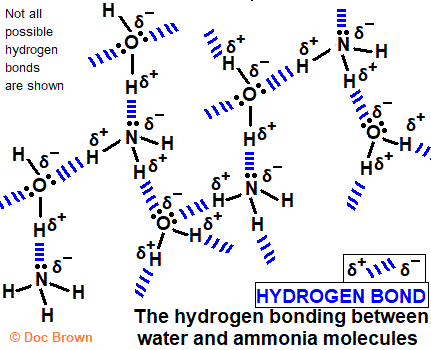

d1 Using your knowledge of the nature of the intermolecular hydrogen bond, be able to explain why ammonia is very soluble in water.

d2  Similarly, be able to explain why lower alcohols are very soluble in water (miscible), but solubility rapidly falls as the carbon chain gets longer.

d3 Know that in an alcohol molecule, the hydroxyl group is hydrophilic and solvated by water via hydrogen bonding, but the 'alkyl' chain is hydrophobic and disrupts the hydrogen bonding between water molecules reducing the solubility of the alcohol.

d4 Be able to draw diagrams illustrating the hydrogen bonds in water, alcohols and aqueous ethanol.

(e) Hydrogen bonding - more on the structure of ice, anomalous density of water and consequences

e1 Be able to explain with particle theory of state changes and hydrogen bonding why ice is less dense than water and be able to draw hydrogen bonding diagrams showing the structure of liquid water and ice.

e2 Know that ice as an open cage like structure that can trap small molecules including the greenhouse gas methane and these so-called clathrates are unstable and readily break down to release the gas.

e3. Know and be able to describe the biological significance and importance to aquatic life of ice forming on the surface of water, rather than sinking.

e4 Be able to explain why ice formation can burst pipes and why water using cooling systems need ant-freeze adding to the water!

(f) Hydrogen bonding in carboxylic acid dimers

f1 Know that carboxylic acids can form dimers via two hydrogen bonds and be able to draw a diagram showing the dimer structure.

f2 Know that the measured doubled molecular mass provides evidence of a dimer structure.

f3 Know that the dimer structure increases the strength of the intermolecular bond raising the melting point and boiling point above what might be expected on the basis non-hydrogen bonding forces (Van der Waals forces).

f4 Appreciate the situation is complex with various configurations possible within the hydrogen bonding networks all of which tend to increase the kinetic energy needed to change state i.e. melting or boiling.

(g) Some of the exceptions to the usual N–H, O–H and H–F hydrogen bonding situations.

g1 Appreciate that hydrogen bonds can be formed between molecules that at first sight might not fit in with the usual N O F molecules.

g2 Multi-halogenated (e.g. with electronegative Cl) molecules can be sufficiently polar to form a hydrogen bond with another highly polar molecule.

g3 Know that there is some evidence that the strongest of hydrogen bonds may have  partial covalent character.

(h) Hydrogen bonding in types of protein structures

h1 Know that hydrogen bonding is very important in the 3D structure of proteins e.g. it helps hold the folded structure of a protein which maybe tissue or an enzyme.

h2 Recognise and be able to draw the hydrogen bond >N-H^δ+llll^δ-O=C< system that holds the secondary structure of proteins at the peptide linkage.

h3 Know that increased temperature or change in pH can weaken hydrogen bonds and denature an enzyme inhibiting its function because the protein molecule no longer has the correct configuration (correct folded shape).

(i) Hydrogen bonding in the alpha helix of DNA and RNA

i1 Know that hydrogen bonding is the most important intermolecular bond hold the 3D structure of the double helix structure of DNA and RNA.

i2 Be able to recognise from DNA and RNA structure where the hydrogen bonds might form between the bases.

i3 Be able to draw a diagram illustrating the hydrogen bond between the single strands of DNA or RNA i.e. >N–H^δ+llll^δ–O=C<   or  >N–H^δ+llll^δ–N<   (for both DNA and RNA)

(j) Examples of intermolecular AND intramolecular hydrogen bonding for the same aromatic molecule and contrasted them with their positional isomers

j1 Know and be able to recognise and describe the difference between an intermolecular hydrogen bond and an intramolecular bond hydrogen bond.

j2 Know that some molecules can display both an intermolecular hydrogen bond and an intramolecular hydrogen bond.

j3 Be able to draw diagrams illustrating an intramolecular hydrogen bond and a linked system of intermolecular hydrogen bonds.

j4 In terms of isomers, appreciate that the formation of an intramolecular bond affects physical properties such as melting point and solubility in solvents.

(k) Hydrogen bonding in sugars and polysaccharides

k1 know that sugars like glucose and polysaccharides like starch have hydroxyl groups that allow intermolecular hydrogen bonding between the molecules.

k2 Know that sugar molecules readily dissolve in water, the solvation process aided by hydrogen bonding between the water and sugar molecules.

k3 Be able to argue that the hydrogen bonding between the polymer chains of starch and cellulose is too strong to allow solvation to dissolve in water.

(l) Hydrogen bonding in polyamides and other polymers

j1 Be able to recognise and explain the hydrogen bonds that give strength to polyamide plastic materials like Nylon and Kevlar.

j2 Appreciate that the manufacturing process maximises the hydrogen bonding (llll) between the C=O and the NH groups of adjacent polymer molecules i.e. >C=O^δ-llll^δ+H-N hydrogen bond to maximise the tensile strength of the polymer.

j3 Be able to explain why poly(ethenol) can dissolve in water with the aid of hydrogen bonding to water molecules aiding the solvation process.

(m) The effect of hydrogen bonding on the dynamic viscosity of liquids

m1 Be able to predict the boiling point order of a group of similar sized molecules with a similar number of electrons.

m2 You must be able to argue this order on the basis of which attractive forces may be exhibited by a molecule - predictions you should be able to make on the basis of its molecular structure.

m3 From the same arguments, be able to predict the increasing order of the values of enthalpy of vaporisation and dynamic viscosity.

(n) Why some aromatic compounds dissolve in water and others do not

n1 Be able to argue why a polar compound like phenol is much more soluble in water than methylbenzene due to the hydrogen bonding between the phenol and water molecules.

n2 Be able to contrast polar molecules and non-polar molecules in their ability to dissolve in highly polar solvents like water or relatively non-polar hydrocarbon solvents.

email doc brown - comments - query?

Index of ALL my chemical equilibrium context revision notes Index
