The uv-visible absorption spectra of some titanium complex ions and compounds

uv-visible absorption spectrum of the hexaaquatitanium(III) transition metal complex ion explaining colour of Ti3+ ion

structure shape of the hexaaquatitanium(III) ion, [Ti(H2O)6]3+(aq) octahedral purple colour of Ti3+ ionThe uv-visible absorption spectrum for the hexaaquatitanium(III) ion, [Ti(H2O)6]3+(aq), shows a λmax of ~520 nm, with strong absorption in the blue-green-yellow region, but little absorption in the violet and red regions, resulting in the ion being a purple in aqueous solution from a combination of violet and red (often quoted as violet in colour).

Note the strong absorption in the 'invisible' ultraviolet region <380 nm).

electronic energy level diagram for the titanium(III) ion hexaaqatitanium(III) complex Ti3+ 3d orbital field splitting diagram

The electronic level field splitting diagram above shows the promotion of an electron by a visible light photon from the 3d ground state to the upper level of the 3d orbitals.

For more details see The chemistry of titanium

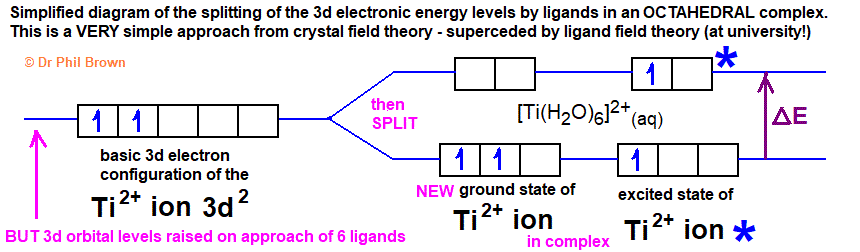

electronic energy level diagram for the titanium(III) ion hexaaqatitanium(II) complex Ti2+ 3d orbital field splitting diagram

structure shape of the hexaaquatitanium(II) ion, [Ti(H2O)6]2+(aq) octahedral violet colour of the Ti2+ ionA solution of the hexaaquatitanium(II) ion, [Ti(H2O)6]2+(aq) is violet.

(I couldn't find a uv-visible absorption spectrum for the hexaaquatitanium(II)

The electronic situation is slightly different than the hexaaquatitanium(III) ion, [Ti(H2O)6]3+(aq) ion, giving a different  ∆Eelec, but visible light photons still provide the necessary excitation energy.



electronic energy level diagram for the titanium(IV) compounds field 3d orbital splitting diagram tetrahedral complex

Two electronic diagrams showing why most titanium(IV) ions or compounds are colourless in solution or a white solid.

There are no electrons in the theoretical Ti4+ ion, that can be promoted from a lower to a higher in the 3d orbitals.

electronic energy level diagram for the titanium(IV) compounds field 3d orbital splitting diagram octahedral complex

As a result, titanium(IV) oxide, TiO2 (titanium dioxide), is a white solid from the reflectance of most visible light photons.

Titanium(IV) chloride,TiCl4, is a colourless covalent liquid, tetrahedral in shape - four chloride ions effectively acts a four electron pair donating ligands.

Hydrated TiO2 dissolves in conc. hydrofluoric acid to give a colourless solution of the hexafluorotitanate(IV) ion, an octahedral shaped complex with the formula [TiF6]2-(aq).

The hexachlorotitanate(IV) ion, is another octahedral shaped complex with the formula [TiCl6]2-(aq) also exists, but is apparently pale yellow.

For more details see The chemistry of titanium
